UCNY SERIES

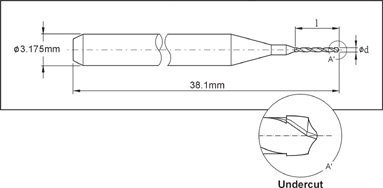

UNDERCUT DRILL FOR HF BOARD

TCT UCNY series drill with larger helix angel is especially suitable for high Tg boards. It is tendency of drill bit with larger helix angle in PCB market.
¡@
¡@
¡@

¡@

¡@
Diameter¡]d¡^ Flute Length¡]l¡^
S N L
0.20mm ¡@ *3.5mm ¡@
0.30mm   5.0/5.5mm *6.0mm
0.35mm   5.0/5.5mm 6.5/6.8mm
0.40mm *5.5mm 7.0mm ¡@
0.45mm ¡@ 7.0mm ¡@
0.50mm   *8.0mm ¡@
0.55mm ¡@ *8.0mm ¡@

"*" Part can be manufactured on request.
