SD/SDC SERIES
SLOT DRILL

TCT SD/SDC series drill with high rigidity design has an excellent slot drilling performance even for short slot.

¡@

¡@

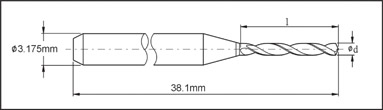

Diameter¡]d¡^ Flute Length¡]l¡^
S N L
0.30mm~ 0.35mm ¡@ *3.5mm ¡@
0.40mm~ 0.55mm ¡@ 4.7mm 5.5mm¡@
0.60mm~ 0.65mm ¡@ 6.7mm 8.7mm¡@
0.70mm~ 3.15mm ¡@ 8.7mm ¡@


"*" Part can be manufactured on request.
