ST/STC SERIES

STANDARD DRILL

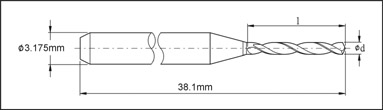

TCT ST/STC series drill with straight type can be used for different kinds of board materials, such as FR-4(generally used), CEM-1,CEM-3,...etc.
¡@

¡@

¡@

¡@
Diameter¡]d¡^ Flute Length¡]l¡^
S N L
0.50mm 7.0mm 8.5mm
*9.0mm
0.55mm 7.0mm 8.5mm 9.0mm
0.60mm 7.0mm 8.7mm 9.5mm
0.65mm *7.0mm 8.7mm 9.5mm
0.70mm *8.5mm 9.5/*10mm ¡@
0.75mm ¡@ 9.5/*10mm ¡@
0.80mm~ 1.20mm ¡@ 10mm ¡@
1.25mm~ 3.175mm ¡@ 12mm ¡@

"*" Part can be manufactured on request.
