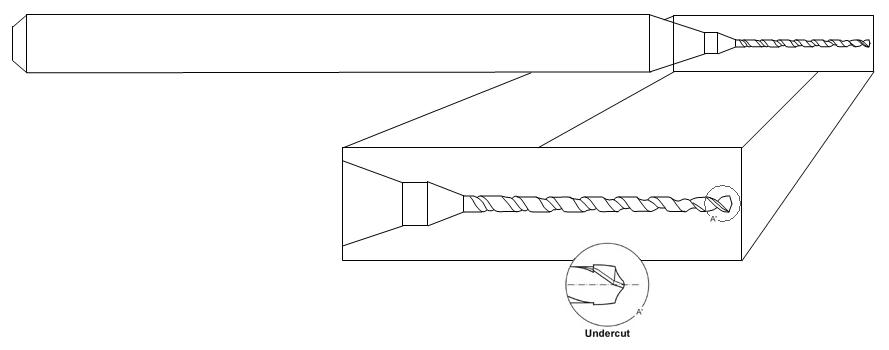

UCY-3 SERIES

UNDERCUT DRILL

UCY-3 is with better chip removal design of UCY. It is suitable for better hole wall quality demand boards, especially on SERVERˇBback planeˇBautomobile and boards with high copper foil content ... etc. It can provide customers to achieve cost down project by longer tool life or more re-sharp times setting.

ˇ@
Diameterˇ]dˇ^ Flute Lengthˇ]lˇ^
S N L
0.200mm *3.0mm 3.5mm *4.0mm
0.225mm ˇ@ *4.3mm
0.300mm   5.0/5.5mm *6.2/*6.5mm
0.350mm   6.5mm
0.400mm *5.5mm 6.5mm
0.450mm *5.5mm
"*" Part can be manufactured on request.
