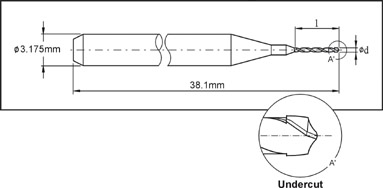

TCT UCCP series drill with larger
helix angle& higher rigidity design is especially suitable for
muliti-layer boards. UCCP series recently has become popular in
Taiwan's PCB market.
ˇ@
ˇ@
|
 |
| Diameterˇ]dˇ^ |
Flute
Lengthˇ]lˇ^ |
| S |
N |
L |
|
0.10mm |
ˇ@ |
*1.8mm |
|
|
0.125mm |
ˇ@ |
*2.5mm |
|
|
0.15mm |
*2.0mmˇ@ |
*2.5mm |
|
|
0.18mm |
ˇ@ |
*2.5mm |
|
|
0.20mm |
ˇ@ |
3.5mm |
*3.8mm |
|
0.25mm |
ˇ@ |
3.8/4.0mm |
*4.5mm |
|
0.30mm |
ˇ@ |
5.0/5.5mm |
6.0/*6.2/*6.5mm |
|
0.35mm |
ˇ@ |
5.0/5.5mm |
6.5/*6.8/*7.0mm |
|
0.40~0.45mm |
*5.5mmˇ@ |
7.0mm |
ˇ@ |
|
0.50mm |
*5.5mmˇ@ |
7.0mm |
*8.0/*8.5mm |
|
0.55mm |
ˇ@ |
8.0mm |
|
|
0.60mm |
ˇ@ |
*8.5mm |
ˇ@ |
|
0.65mm |
ˇ@*7.0mm |
*8.5mm |
|
|
0.70mm |
ˇ@ |
|
ˇ@*10.0mm |
|
0.75mm |
ˇ@ |
|
ˇ@*10.0mm |
|
 |
| |
| |
|
 |
"*"
Part can be manufactured on request. |
|
