MD2 SERIES

MICRO DRILL WITH 2MM SHANK

TCT MD2 series drill bit is with the newest single flute geometry design in order to meet the high productivity requirement of IC substrate (BGA/CSP/Flip Chip) industry. The high rigidity characteristic of single flute design can satisfy customers to achieve to stack up & longer tool life setting.

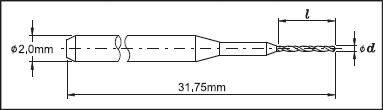

Diameter¡]d¡^ Flute Length¡]l¡^
S N L
0.075mm   1.3mm
0.080mm
1.4mm

0.090mm   1.6mm
0.105mm   1.8mm
0.125mm     2.5mm
0.135mm     2.5mm
0.150mm   2.5mm 2.7mm
0.200mm   3.5mm
With full sizes, inch spec. is also included.
Special flute lengths are also avaiable on request.
"*" Part can be manufactured on request.
