E300S SERIES
END MILL WITH 3 STRAIGHT FLUTES

TCT E300S series end mill with 3 straight flutes is especially suited for the conductor routing of gold finger to have an excellent sharp edge quality.

¡@

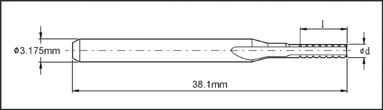

Diameter¡]d¡^ Flute Length¡]l¡^
S N L
0.80mm~ 0.90mm ¡@ 4.0mm ¡@
1.00mm~ 1.10mm ¡@ 4.5mm ¡@
1.20mm~ 1.40mm ¡@ 5.0mm ¡@
1.50mm~ 1.80mm ¡@ 6.5mm ¡@
2.00mm~ 2.80mm ¡@ 8.0mm ¡@
3.00mm~ 3.175mm ¡@ 10.0mm ¡@

Diameter 0.80mm~ 3.175mm -- Solid type.
