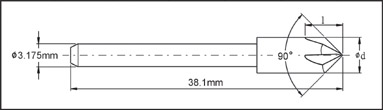

CC SERIES
CHAMFER CUTTER

TCT CC series chamfer cutter is designed to produce shape groove of the printed circuit boards. CC is mainly used for inside slot chamfering or screw hole drilling.
Diameter¡]d¡^ Flute Length¡]l¡^
S N L
1.25mm ¡@ 3.1mm
2.00mm ¡@ 5.1mm ¡@
5.00mm ¡@ 7.3mm ¡@
6.00mm ¡@ 7.3mm ¡@
6.50mm ¡@ 7.3mm ¡@
For metric size only.
Different diameters or point angles are available on request.
Diameter 1.25mm~ 6.50mm -- Composite type.
