 E300S CC CS/CSI ARE
AR SERIES
ALUMINUM MATERIAL CUTTING TOOL

TCT ARE series is especially designed for aluminum board contouring and cavity routing. It can improve the burr problem and provide sharp edge quality.

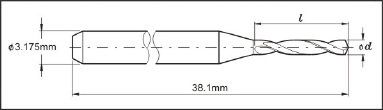

Diameter¡]d¡^ Flute Length¡]l¡^
S N L
1.00mm ¡@ 6.0mm
1.20mm ¡@ 6.0mm ¡@
1.50mm ¡@ 6.5mm
1.60mm ¡@ 8.0mm ¡@
2.00mm 6.0mm 8.0mm
2.40mm 6.0mm   ¡@

Different diameters or point angles are available on request.
Diameter 1.00mm~ 2.40mm -- Composite type.
