ENDMILL SERIES
ENDMILL WITH 2 OR 3 FLUTES, RIGHT OR LEFT HAND (UP OR DOWN CUT)

In order to meet the variable demand of IC substrate (BGA) market, TCT focus on the endmill development for different function requirements.
Customers can get excellent sharp edge or surface through slitting or blind routing process. Besides, TCT endmill products are also suitable for the application of teflon, flexible boards, plastic material or heat sink BGA.

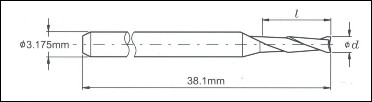

Diameter¡]d¡^ Flute Length¡]l¡^
S N L
0.40mm   2.0mm
0.50mm   3.0mm
0.60mm   3.0/3.5mm
0.70mm   3.0/4.0mm
0.80mm 3.0mm 4.0/4.5mm
1.00mm 5.0mm 6.0mm 7.0mm
1.20mm   6.5/7.0mm
1.30mm   6.5/7.0mm
1.50mm   6.5mm 8.0mm
1.60mm   6.5mm 8.0mm
1.80mm   6.5mm 8.0mm
2.00mm   8.0mm 10.0mm
2.40mm   8.0mm 10.0mm
3.00mm   9.5mm 12.0mm
For metric size only.
Up cut/Down cut are all available.
Coating process is available on request.
Different diameters or point angles are available on request.
Diameter 0.40mm~ 3.00mm -- Composite type.
