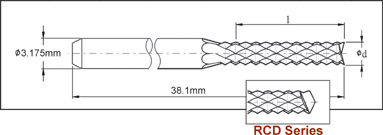

RCF/RCD SERIES
DIAMOND CUT ROUTER WITH FISH TAIL/DRILL POINT

TCT RCF series router with diamond cut geometry for general purpose contouring can approach a maximum tool life when tools are used on well maintained equipment which is assisted with good pressure foot holding system.
Diameter¡]d¡^ Flute Length¡]l¡^
S N L
0.40mm ¡@ 4.0mm 5.0mm ¡@
0.50mm ¡@   5.0mm ¡@
0.80mm~0.70mm ¡@ 5.0mm ¡@
0.80mm ¡@ 4.5mm 6.5mm ¡@
0.90mm ¡@ 5.0mm 6.0mm ¡@
1.00mm 5.0mm 6.0mm 8.0mm ¡@
1.10mm~ 1.40mm   6.0mm 8.0mm
1.50mm ¡@ 8.0mm 9.0mm
1.60mm ¡@ 8.0mm 9.0/10.0mm ¡@
1.70mm~ 1.90mm ¡@ 8.0mm 10.0mm
2.00mm 8.0mm 10.0mm ¡@
2.10mm~ 2.90mm   10.0mm 12.0mm
3.00mm~ 3.175mm ¡@ 12.0mm ¡@
With full sizes, inch spec. is also included.
Different flute length is available on request.
Diameter 0.40mm~ 3.175mm -- Solid type.
