RCR/RCR-1 SERIES
ROUTER WITH EXCELLENT CHIP REMOVAL

RCR/RCR-1 series router with very long tool life and excellent chip removal performance, can resolve the tool life shorten problem on halogen free boards or other kind of hard boards.

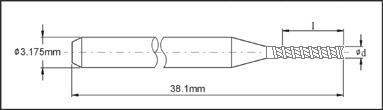

Diameter¡]d¡^ Flute Length¡]l¡^
S N L
0.80mm   5.0mm 6.5mm
0.90mm     7.5mm
1.00mm 6.0mm 6.5mm 7.0mm
1.10mm   6.5mm
1.20mm 6.5mm 7.5mm 8.0mm
1.50mm   9.0mm
1.60mm   9.5mm 10.0mm
1.70mm 6.0mm 9.0mm
1.80mm 8.0mm 9.0mm 10.0mm
1.87mm   9.0mm
1.90mm 8.0mm 9.0mm 10.0mm
2.00mm 8.0mm 9.5mm 11.5mm
2.10mm 8.0mm
2.20mm 8.0mm
2.30mm 8.0mm
2.38mm ¡@   11.5mm
2.40mm 8.0mm 10.0mm 11.5mm
