CBF/CBD SERIES

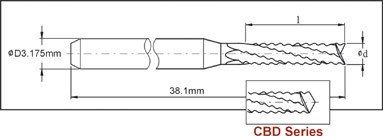

CHIP BREAK ROUTER WITH FISH TAIL/DRILL POINT

TCT CBF series router with better chip removal property insures a fine, sharp edge for milling surface. Besides, to compare with diamond cut router,CBF with smaller vibration is helpful extending spindle life in routing process.

¡@
Diameter¡]d¡^ Flute Length¡]l¡^
S N L
0.50mm   3.0mm ¡@
0.60mm ¡@ 4.0mm ¡@
0.70mm   4.0mm ¡@
0.80mm 4.0mm 4.5mm 5.0mm
0.90mm   5.0mm 5.0/7.0mm
1.00mm 5.0mm 6.0mm 7.0mm
1.10mm~ 1.40mm   6.0mm 7.0mm
1.50mm~ 1.90mm ¡@ 8.0mm 7.0/8.0mm
2.00mm 8.0mm 10.0mm 9.0mm
2.10mm~ 2.30mm   10.0mm ¡@
2.40mm 8.0mm 10.0mm ¡@
2.50mm~ 2.90mm   10.0mm 12.0mm
3.00mm~ 3.175mm ¡@ 12.0mm ¡@

Diameter 0.50mm~ 3.175mm -- Solid type.
