RCFC SERIES
COMPOSITE TYPE ROUTER FOR PCB

TCT RCFC series is brazing type router which is developed under the consideration of environmental perotection and cost-down purpose. We can save raw material costs and reduce products price to customers. RCFC owns similar performance of solid type router. It would be the best choice for cost-down purpose.

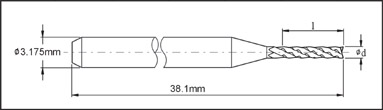

Diameter¡]d¡^ Flute Length¡]l¡^
S N L
0.40mm   4.0mm 5.0mm
0.50mm     5.0mm
0.60mm~0.70mm   5.0mm
0.80mm   5.5mm 6.5/7.0mm
1.00mm   6.0mm 7.0/8.0mm
1.20mm   6.5mm 8.0mm
1.50mm 6.5mm 8.0mm 9.0mm
1.60mm 8.0mm 10.0mm ¡@
